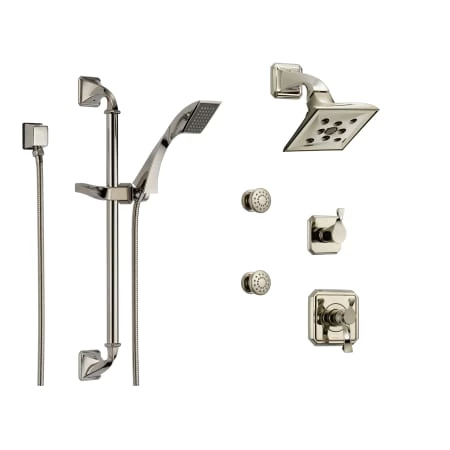

Brizo Thermostatic Shower System with Rain Shower Head, Hand Shower with Slide Bar, 6 Function Diverter, and 2 Body Sprays from the Virage Collection

Brizo Virage TempAssure Shower Package Contains:

• TempAssure Valve Trim (T60030)
• Handshower and Slide Bar with Hose and Wall Supply (85730)
• 6 Setting Diverter Trim (T60930)
• Rain Shower Head (81330)
• Shower Arm (RP62603)
• 2 Round Body Sprays (84110)
• Thermostatic Mixing Rough-In Valve (R60000-UNBX)
• Diverter Rough-In Valve (R60700)

Do you like this Brizo shower system, but want to make changes to it? Give us a call & one of our customer care experts will help customize your own personal Brizo shower.

Product Features:

• Covered under Brizo’s limited lifetime residential and 5 year limited commercial warranties
• Superior finishing process – faucet finish covered under lifetime warranty
• Single function rain shower head
• Dual function cartridge – separate volume and temperature controls
• Thermostatic valve cartridge with scald guard
• Shower package includes: valve trim, shower head, shower arm, 2 body sprays and handshower with slide bar and thermostatic and diverter rough-in valves

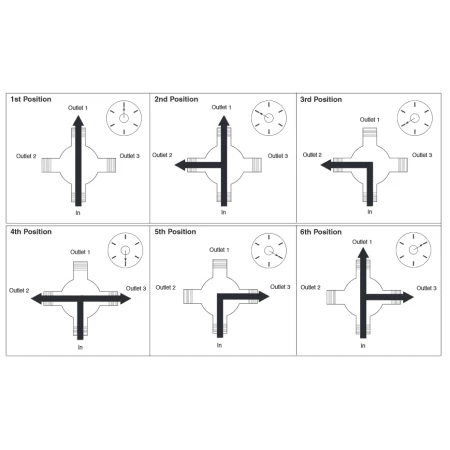

• Six function diverter with 3 individual positions, 3 shared positions (for example, a shower head, hand shower, and body sprays could each be run independently or in any combination of two)
• Designed for use with standard 1/2″ or 3/4″ U.S. plumbing collections
• ADA compliant
• All necessary mounting hardware included

Product Technologies / Benefits:

• H2O Kinetic: Brizo’s proprietary H2O Kinetic technology uses the science of fluidics to create a warmer shower experience that feels like more water, without using more water. This is accomplished through larger water droplets that leave the spray head in a unique wave pattern. H2O Kinetic showers are self-cleaning, have larger spray holes that don’t clog, and do not use any moving parts, so they are very low-maintenance.
• Independent Volume Control: Dual-control valve trims are what separate Brizo showers from the competition. The top, smaller handle controls temperature, while the bottom, larger dial controls the water volume (flow rate). The distinct advantage to this is that you can set the temperature control to a temperature you like, and then leave it, turning the shower on and off each time with the volume control. You’ll never have to fuss with the temperature again.
• TempAssure: Brizo’s higher-end dual function TempAssure thermostatic valve cartridges work like a thermostat. They use a wax and spring configuration to measure and monitor the temperature of the water and automatically adjust the hot/cold mix to precisely maintain water temperatures within a safe +/- 3°F.
• MultiChoice Valve: Flexibility is the big benefit of the MultiChoice Universal Valve. Once the MultiChoice rough is installed, future shower function upgrades or style changes can easily be made without altering the plumbing behind the wall.

Valve Trim Specifications:

• 120° swinging temperature dial
• Temperature control includes pre-set safety stop with override
• Escutcheon Height: 7-1/2″
• Escutcheon Width: 7-1/2″
• MultiChoice Rough-In valve included in package

Shower Head and Arm Specifications:

• Shower Head Width: 8″
• Flow Rate: 1.75 GPM (gallons-per-minute)
• Shower Arm Length: 5-1/2″
• Adjustable wall flange

Hand Shower Specifications:

• Single spray function
• Flow Rate: 1.75 gallons-per-minute
• Hand Shower Height: 9-7/8″
• Integrated dual check-valve backflow preventers
• Hose Length: 69″
• 1/2″ female connections on both ends of the hose
• Includes sliding hand shower parking bracket
• Depth (From Wall): 3-1/4″
• Parking bracket holding angle is adjustable

Body Spray Specifications:

• Body Spray Diameter: 2-7/16″
• Body Spray Extension: 1-7/8″
• Body Spray Flow Rate: 1.75 gallons-per-minute
