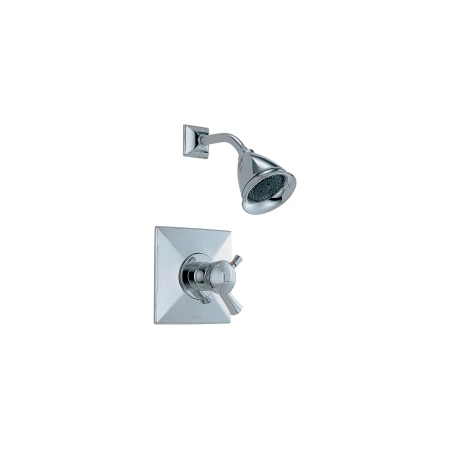

Brizo Shower Valve Trim Double Handle Less Valve with TempAssure Technology from the Vesi Collection

Vesi TempAssure Double Handle Shower Only Trim Less Valve

Perfectly matches Vesi faucets for a coordinated bath suite. TempAssure thermostatic tub/shower flows at 8.5 gpm @ 60 psi. Three function showerhead.

Trim Features:

• TempAssure™ 60 series thermostatic valve cartridge.
• Thermostatic wax element maintains the outlet temperature to ±3.6?F.
• Must also order R60000-UNBX rough valve body.
• Back to back installation capability.
• Lever volume control handle; temperature adjustment dial.
• Graphics indicate hot/cold temperature adjustment.
• Field adjustable to limit rotation into hot water zone.
• All parts are replaceable from the front of the valve.
• Adjusts for up to 1” wall thickness.

Trim Specifications:

• ADA Compliant: Yes
• WaterSense Certified: No
• Showerhead Width: 4.91″
• Shower Arm Reach: 7″
• Showerhead Shape: Round
• Showerhead: Single Function
• Spray Settings: 1
• Flow Rate (GPM): 2.5
• Material: Brass
• Number Of Handles: 2
• Handle Style: Metal Lever
• Handles Included: Yes
• Diverter Included: No
• Handshower Included: No
• Pressure Balanced: Yes
• Slide Bar Included: No
• Valve Included: No

Brizo Technologies

• MultiChoice® Universal Valve – The MultiChoice Universal Valve allows you to install one rough in the wall and then choose from or upgrade to a variety of trim styles at a later date.
• Brilliance Finishes: Many Brizo products are made with Brilliance® finishes, which resist abrasions and discolorations better than traditional brass or even chrome.
• TempAssure®: Brizo’s higher-end dual function TempAssure® thermostatic valve cartridges work like a thermostat. They use a wax and spring configuration to measure and monitor the temperature of the water and automatically adjust the hot/cold mix to precisely maintain water temperatures within a safe +/- 3°F.
