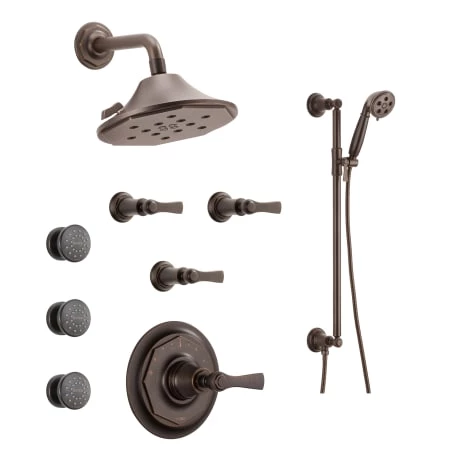

Brizo Sensori Custom Thermostatic Shower System with Showerhead, Volume Controls, Handshower, and Body Sprays – Valves Included

All items in this package are covered under Brizo’s faucet and finish limited lifetime warranty

Brizo BSS-Rook-T66T03 Shower System Includes:

• Rook Thermostatic Valve Trim (T66T060)
• Rook Multi-Function Shower Head with H2Okinetic® Technology (87461)
• Rook Wall Mount Shower Arm (RP78580)
• Touch-Clean® Body Spray (84110 – Set of 3)
• Rook Multi-Function Handshower with Slide Bar (88761)
• Rook Volume Control Trim (T66660 – Set of 3)
• Sensori® Volume Control Rough-In Valve (R35600 – Set of 3)
• Sensori® Thermostatic Rough-In Valve with Integral Stops (R35000-WS)

Do you like this Brizo shower system, but want to make changes to it? Give us a call & one of our customer care experts will help customize your own personal Brizo shower.

Brizo BSS-Rook-T66T03 Thermostatic Valve Trim / Volume Control Trim Specifications:

• Valve trim and volume control dials rotate 90° in either direction
• Temperature control includes pre-set safety stop with override
• Lever handles are ADA compliant
• Valve Trim Diameter: 7″
• Volume Control Diameter: 2-7/16″
• Volume Control Projection (From Wall): 4″
• All necessary mounting hardware and valves are included

Brizo BSS-Rook-T66T03 Shower Head / Shower Arm Specifications:

• Multi-function shower head featuring four spray patterns – massaging spray, H2Okinetic full body, H2Okinetic Invigorating, and pause
• Shower Head Diameter: 7-15/16″
• Shower Head Height: 3-15/16″
• Flow Rate: 1.75 gpm (gallons-per-minute)
• Shower Arm Reach: 7″

Brizo BSS-Rook-T66T03 Handshower / Slide Bar Specifications:

• Handshower features three spray patterns – H2Okinetic spray, massaging, and pause
• Slide bar includes integrated wall supply – can be installed on top or bottom
• Handshower Height: 10″
• Flow Rate: 1.75 gpm (gallons-per-minute)
• Slide Bar Length: 28-1/4″ (center-to-center distance between installation holes)
• Slide Bar Projection (From Wall): 3-13/16″
• Hose Length: 60″ – 82″ (stretchable metal hose)

Brizo BSS-Rook-T66T03 Body Spray Specifications:

• Body spray is adjustable 30° up or down
• Body Spray Diameter: 2-7/16″
• Body Spray Projection (From Wall): 2″ (can be adjusted +/- 1/4″)
• Flow Rate: 1.75 gpm (gallons-per-minute)

Brizo BSS-Rook-T66T03 Shower System Technologies / Benefits:

• Sensori® Thermostatic Valving: Brizo’s Sensori® Technology works like a thermostat in high-flow showers to measure and monitor the temperature of the water and automatically adjust the water mix to maintain a more precise water temperature.

• H2Okinetic®: Brizo’s proprietary H2Okinetic® Technology uses the science of fluidics to create a warmer shower experience that feels like more water, without using more water. This is accomplished through larger water droplets that leave the spray head in a unique wave pattern. H2Okinetic® showers are self-cleaning, have larger spray holes that don’t clog, and do not use any moving parts, so they are very low-maintenance.

• Brilliance Finishes: Brizo Brilliance Finishes are designed to not corrode, tarnish or discolor for a “like-new” look for life. Through a process known as Physical Vapor Deposition (PVD) finish molecules are embedded deep in within the surface of the faucet, creating a bond that is virtually indestructible with an incredibly reflective shine.
