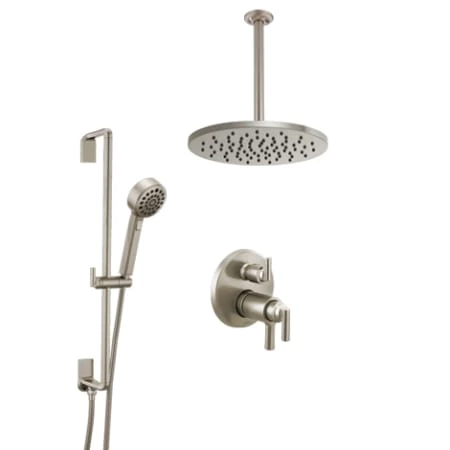

Brizo BSS-Levoir-T755T02 Shower System Includes:
- Levoir Thermostatic Valve Trim with Integrated 3 Function Diverter (T75598)
- Raincan Shower Head (81392)
- Ceiling Mount Shower Arm (RP48986)
- Levoir Hand Shower Set with Integrated Wall Supply (88798)
- Rough-In Valve (R75000-WS)
Do you like this Brizo shower system, but want to make changes to it? Give us a call & one of our customer care experts will help customize your own personal Brizo shower.
Brizo T75598 Trim Features/Specifications:
- Covered under Brizo’s limited lifetime residential warranty and 5 year limited commercial warranty
- Coordinates with products from the Levoir line
- Dual function cartridge – separate dials control both volume and temperature independently
- Thermostatic valve trim
- Independent temperature, volume and diverter control
- Diverter has 2 individual positions and 1 shared position
- Valve diameter: 6-5/8”Â
- Handle Projection: 5-1/2”
- ADA compliant
- Made in America
- Note: the RIGHT side diverter port MUST be capped
- Not recommended for tub spout applications
Brizo 81392 Showerhead Features/Specifications:
- Solid brass
- Single function showerhead
- Ball connector rotates and pivots.
- Finished spray face
- Showerhead width: 11-3/4″ (left to right)
- Showerhead height: 2-3/8″ (top to bottom)
- Flow rate: 1.75 gallons-per-minute
- Showerhead is intended for overhead raincan orientation
Brizo RP48996 Shower Arm Features/Specifications:
- Solid brass
- Length: 10″ (left to right)
- Escutcheon diameter: 2-3/8″ (top to bottom)
- Connection size: 1/2″
Brizo 88798 Hand Shower Features/Specifications:
- Integrated wall supplyÂ
- Hand shower height: 11-3/8” (top to bottom)
- Hand shower width: 3-15/16” (left to right)
- Flow rate: 1.75 gallons-per-minute
- Hose length: 60 – 82”
- Connection size: 1/2”
- Slide bar length: 26-11/16”
- Slide bar depth: 3-3/4”
Â
